Migrate Windows 2012R2 from Citrix XenServer to Nutanix AHV

Shares

NOTE: UPDATED VERSION IS AVAILABLE UNDER BELOW LINK Migrate Windows 2012R2 from Citrix XenServer to Nutanix AHV – Update

So far I have blogged out about:

And today, yet another migration post. this time how to Migrate Windows 2012R2 from Citrix XenServer to Nutanix AHV.

Pre-requsities:
  • Installed XenServer tools on VM
  • Installed Nutanix virtIO drivers
  • Linux VM with qemu-img installed
  • username and password for local user with Admin rights to server
  • remove all snapshots from VM
  • basic knowledge about Citrix XenServer, XenCenter and Nutanix AHV is a must 🙂

Migration:

  • Create new container on Nutanix AHV
  • Mount new container as NFS storage on Citrix XenServer
  • Move virtual machine disks to new storage
  • Stop VM
  • Log in to XenServer over ssh and:
    • run command: xe list-vm
    • note down VM’s name and UUID
    • run command:  xe vm-disk-list uuid=<vmUUID>
    • note down UUID for VDI files
      [[email protected] /]# xe vm-disk-list uuid=46796fa7-f31f-faa5-ae16-27414ae3b8e1
      Disk 0 VBD:
      uuid ( RO)             : c8d7ebcf-a958-424c-650e-64488fed6794
          vm-name-label ( RO): win2k12r2xs
             userdevice ( RW): 1

      Disk 0 VDI:
      uuid ( RO)             : 46b05e07-f3f2-478c-a7eb-d9a416713b51
             name-label ( RW): data01
          sr-name-label ( RO): NFS virtual disk storage
           virtual-size ( RO): 10737418240

      Disk 1 VBD:
      uuid ( RO)             : 6bbaca4c-dba5-296a-5d57-056be1129a03
          vm-name-label ( RO): win2k12r2xs
             userdevice ( RW): 0

      Disk 1 VDI:
      uuid ( RO)             : 1672ea5f-0185-4fa9-8c35-eb1aae6d865e
             name-label ( RW): win2k12r2xs 0
          sr-name-label ( RO): NFS virtual disk storage
           virtual-size ( RO): 34359738368

      Disk 2 VBD:
      uuid ( RO)             : 77611e99-7502-baaf-f669-4de562a8b42d
          vm-name-label ( RO): win2k12r2xs
             userdevice ( RW): 2

      Disk 2 VDI:
      uuid ( RO)             : fa29c3ea-be54-4839-9d60-1c571be17ce6
             name-label ( RW): data02
          sr-name-label ( RO): NFS virtual disk storage
           virtual-size ( RO): 11811160064




  • Log in to Linux with qemu-img installed – you can use either AHV host or some other linux box
  • Mount new container from Nutanix to linux host
  • run qemu-img and convert all disks from VHD to RAW format supported by Nutanix AHV
    command example: qemu-img convert -f vpc UUID.vhd -O raw output_file.img

Below example of converting 3 disks from VHD to RAW

[[email protected] 94087090-a91d-f09c-b6c7-7fd88498f4ac]# qemu-img convert -f vpc 1672ea5f-0185-4fa9-8c35-eb1aae6d865e.vhd -O raw win2k12xs01.img && qemu-img convert -f vpc 46b05e07-f3f2-478c-a7eb-d9a416713b51.vhd  -O raw win2k12xsdata01.img && qemu-img convert -f vpc fa29c3ea-be54-4839-9d60-1c571be17ce6.vhd -O raw win2k12xsdata02.img

[[email protected] 94087090-a91d-f09c-b6c7-7fd88498f4ac]# ll
total 18941630
-rw-r--r--. 1 root root  8489112064 Sep 23 14:00 1672ea5f-0185-4fa9-8c35-eb1aae6d865e.vhd
-rw-r--r--. 1 root root    90374656 Sep 23 14:00 46b05e07-f3f2-478c-a7eb-d9a416713b51.vhd
-rw-r--r--. 1 root root  2463174656 Sep 23 14:46 a56f680d-3fe7-4cab-9a6d-9bc7a221c2db.vhd
-rw-r--r--. 1 root root    96682496 Sep 23 14:00 fa29c3ea-be54-4839-9d60-1c571be17ce6.vhd
-rw-r--r--. 1 root root         492 Sep 22 12:39 filelog.txt
-rw-r--r--. 1 root root 34359214080 Sep 23 14:45 win2k12xs01.img
-rw-r--r--. 1 root root 10737377280 Sep 23 14:45 win2k12xsdata01.img
-rw-r--r--. 1 root root 11810856960 Sep 23 14:46 win2k12xsdata02.img
  • Create new VM in Nutanix Acropolis, use
    • Operation: CLONE FORM ADSF FILE
    • bus type: SCSI

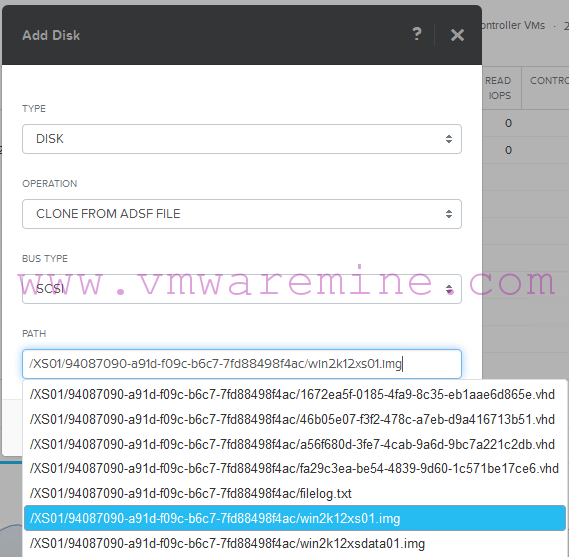

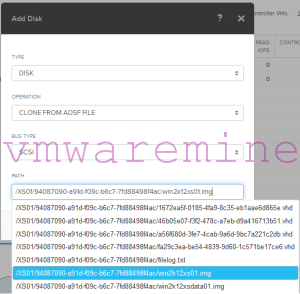

      Select RAW disk image

      Select RAW disk image



  • Take VM snapshot before you start it up
  • Boot Windows in SAFE MODE
  • In device manager, check in Show hidden devices and remove all devices when you can see XEN ir Citrix in the name

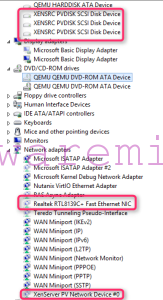

    Remove XenServer hardware from VM

    Remove XenServer hardware from VM



  • Reboot VM
  • Uninstall all drivers and software which are related to Citrix

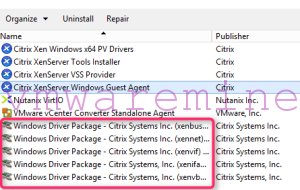

    Uninstall all drivers and software

    Uninstall all drivers and software



  • Reboot server
  • Assign IP address to VM and you are done 🙂

VIDEO – Migrate Windows 2012R2 from Citrix XenServer to Nutanix AHV
